线性模型二分类

• 1. Logistic函数(也叫Sigmoid函数)
• 2. 构建Moon1000数据集
• 3. 模型构建
• 4. 损失函数：交叉熵
• 5. 模型优化：梯度下降法
• 6. 评价标准
• 总结

---

1. Logistic函数(也叫Sigmoid函数)

Logistic 回归会将输入特征与权重做线性叠加，然后通过非线性函数 $g:\mathbb{R}^D \to (0,1)$ 输出后验概率 $p(y=1\mid \boldsymbol{x})$：
$$p(y=1\mid \boldsymbol{x}) = \sigma(\boldsymbol{w}^\top \boldsymbol{x}+b),$$
其中 $\sigma(\cdot)$ 为 Logistic 函数（也叫 sigmoid 函数）：
$$\sigma(x)=\frac{1}{1+\exp(-x)}.$$

下面给出实现 Logistic 函数的代码：

import torch
import matplotlib.pyplot as plt

def losistic(x):
    return 1/(1+torch.exp(-x))

# 绘制logistic函数在(-10,10)的代码
x = torch.linspace(-10,10,1000)
y = logistic(x)
plt.figure()
plt.plot(x.tolist(),y.tolist(),label='Logistic')
plt.legend()
plt.show()

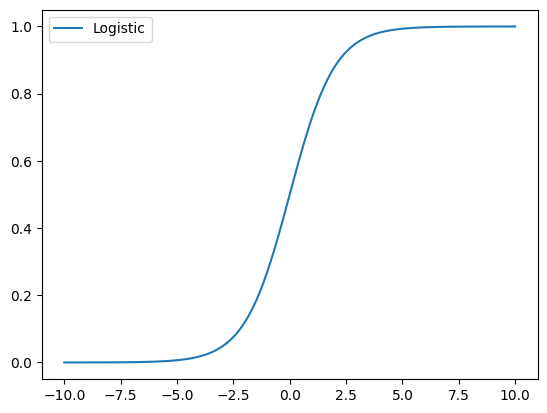

输出结果：

2. 构建Moon1000数据集

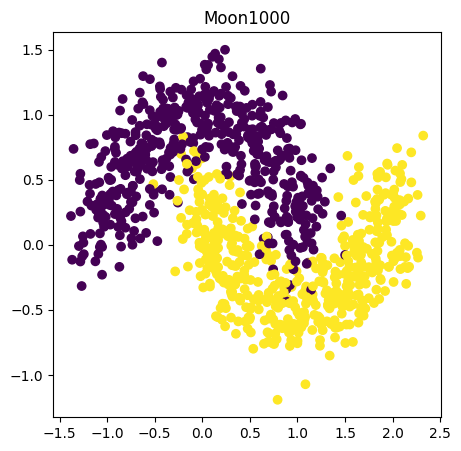

Moon100数据集是一个二分类数据集：1000 条样本，每个样本有 2 个特征。本数据集的样本来自带噪声的两个弯月形状函数，每个弯月对应一个类别。生成数据的代码如下：

import math

def make_moons(n_samples = 1000, shuffle = True, noise=None, seed = None):
    # 生成两个弯月形状的二分类数据
    g = torch.Generator().manual_seed(seed) if seed is not None else None
    n_out = n_samples // 2
    n_in = n_samples - n_out
    outer_x = torch.cos(torch.linspace(0, math.pi, n_out))
    outer_y = torch.sin(torch.linspace(0, math.pi, n_out))
    inner_x = 1-torch.cos(torch.linspace(0, math.pi, n_in))
    inner_y = 0.5-torch.cos(torch.linspace(0, math.pi, n_in))
    X = torch.stack([
        torch.cat([outer_x, inner_x]),
        torch.cat([outer_y, inner_y]),
    ], dim=1)
    y = torch.cat([torch.zeros(n_out), torch.ones(n_in)])
    if shuffle:
        idx = torch.randperm(X.shape[0], generator=g)
        X = X[idx]; y = y[idx]
    if noise is not None:
        X = X + torch.normal(mean=0.0, std=noise, size=X.shape, generator=g)
    return X, y

torch.manual_seed(0)
n_samples = 1000
X,y = make_moons(n_samples = n_samples, shuffle = True, noise = 0.2)
plt.figure()
plt.scatter(X[:,0].tolist(), X[:,1].tolist(), c = y.tolist())

# 训练集640条、验证集160条、测试集200条。
num_train, num_dev, num_test = 640, 160, 200
X_train, y_train = X[:num_train], y[:num_train]
X_dev,   y_dev   = X[num_train:num_train + num_dev], y[num_train:num_train + num_dev]
X_test,  y_test  = X[num_train + num_dev:], y[num_train + num_dev:]
y_train = y_train.reshape(-1, 1)
y_dev   = y_dev.reshape(-1, 1)
y_test  = y_test.reshape(-1, 1)
print('X_train shape:', X_train.shape, 'y_train shape:', y_train.shape)

输出结果：

torch.Size([640])
X_train shape: torch.Size([640, 2]) y_train shape: torch.Size([640, 1])

3. 模型构建

构建一个Model_LR，代码为：

class Op:
    def __call__(self, inputs):
        return self.forward(inputs)
    def forward(self, *args, **kwargs):
        raise NotImplementedError
    def backward(self, *args, **kwargs):
        raise NotImplementedError

class Model_LR(Op):
    def __init__(self, input_size):
        super().__init__()
        self.params = {
            'w': torch.rand(input_size, 1),
            'b': torch.zeros(1),
        }
        # 存放参数的梯度
        self.grads = {}
        self.X = None
        self.outputs = None

    def forward(self, inputs):
        """输入 X (N, D)，输出预测概率 (N, 1)。"""
        self.X = inputs
        score = inputs @ self.params['w'] + self.params['b']
        # 用数值稳定的 torch.sigmoid（等价于 logistic，但不会上溢）
        self.outputs = torch.sigmoid(score)
        return self.outputs

    def backward(self, labels):
        """直接给出 loss 关于参数的梯度（手动推导）。"""
        N = labels.shape[0]
        self.grads['w'] = -1 / N * (self.X.t() @ (labels - self.outputs))
        self.grads['b'] = -1 / N * (labels - self.outputs).sum()


# 随机生成 3 条长度为 4 的数据测试一下
torch.manual_seed(0)
inputs = torch.randn(3, 4)
print('Input:\n', inputs)
model = Model_LR(input_size=4)
outputs = model(inputs)
print('Output:\n', outputs)

输出结果

Input:
 tensor([[ 1.5410, -0.2934, -2.1788,  0.5684],
        [-1.0845, -1.3986,  0.4033,  0.8380],
        [-0.7193, -0.4033, -0.5966,  0.1820]])
Output:
 tensor([[0.1720],
        [0.3071],
        [0.2523]])

4. 损失函数：交叉熵

给定 $N$ 个训练样本，使用交叉熵损失，Logistic 回归的风险函数为
$$\mathcal{R}(\boldsymbol{w},b)=-\frac{1}{N}\sum_{n=1}^N \Big(y^{(n)}\log\hat y^{(n)} + (1-y^{(n)})\log(1-\hat y^{(n)})\Big).$$
向量形式：
$$\mathcal{R}(\boldsymbol{w},b)=-\frac{1}{N}\Big(\boldsymbol{y}^\top \log\hat{\boldsymbol{y}} + (1-\boldsymbol{y})^\top\log(1-\hat{\boldsymbol{y}})\Big).$$
对应的代码为：

class BinaryCrossEntropyLoss(Op):
    def __init__(self):
        self.predicts = None
        self.labels = None
    def __call__(self, predicts, labels):
        return self.forward(predicts, labels)
    def forward(self, predicts, labels):
        self.predicts = predicts
        self.labels = labels
        N = predicts.shape[0]
        eps = 1e-7
        # 对模型的预测概率进行裁剪（clamp），是深度学习实践中一个非常常见且重要的数值稳定化操作。它的核心目的是防止概率值达到0或1的极端边界
        p = predicts.clamp(eps, 1 - eps)
        loss = -1/N*(labels.t() @ torch.log(p)+(1-labels).t() @ torch.log(1-p))
        return loss.squeeze()

labels = torch.ones(3, 1)
bce_loss = BinaryCrossEntropyLoss()
print('loss:', bce_loss(outputs, labels))

5. 模型优化：梯度下降法

梯度计算方法：交叉熵 $\mathcal{R}(\boldsymbol{w},b)$ 关于参数 $\boldsymbol{w}$ 和 $b$ 的偏导数为
$$\frac{\partial \mathcal{R}}{\partial \boldsymbol{w}} = -\frac{1}{N}\boldsymbol{X}^\top(\boldsymbol{y}-\hat{\boldsymbol{y}}), \qquad \frac{\partial \mathcal{R}}{\partial b} = -\frac{1}{N}\mathbf{1}^\top(\boldsymbol{y}-\hat{\boldsymbol{y}}).$$
我们已经在 Model_LR.backward() 里实现了这两个偏导数。注意：这里 backward 实现的是"损失对参数"的梯度，不是 forward 算子本身的梯度——我们手动把整个 Loss + Sigmoid + Linear 的复合梯度推导出来直接使用。
参数更新公式为：
$$\boldsymbol{w} \leftarrow \boldsymbol{w} - \alpha \frac{\partial \mathcal{R}}{\partial \boldsymbol{w}}$$
对应的python代码为：

from abc import ABC, abstractmethod

class Optimizer(ABC):
    def __init__(self, init_lr, model):
        self.init_lr = init_lr
        self.model = model
    @abstractmethod
    def step(self):
        pass

class SimpleBatchGD(Optimizer):
    def step(self):
        if isinstance(self.model.params, dict):
            for key in self.model.params.keys():
                self.model.params[key] = self.model.params[key] - self.init_lr * self.model.grads[key]

注：

• ABC是 Python 中 Abstract Base Class（抽象基类）的缩写，来自 abc 模块。它用于创建抽象类，是面向对象编程中实现接口规范和多态的重要工具。抽象基类是一个不能被实例化的类，它的作用是定义一个模板或接口，规定子类必须实现哪些方法。

  from abc import ABC, abstractmethod

  class Optimizer(ABC):
      def __init__(self, init_lr, model):
          self.init_lr = init_lr
          self.model = model

      @abstractmethod
      def step(self):  # 抽象方法：定义接口规范
          pass

  # ✅ 正确：子类实现了 step 方法
  class SimpleBatchGD(Optimizer):
      def step(self):
          # 具体实现
          pass

  # ❌ 错误：子类没有实现 step 方法
  class BadOptimizer(Optimizer):
      pass  # 这会抛出 TypeError，无法实例化


6. 评价标准

在分类任务中，通常使用准确率（Accuracy）作为评价指标——正确预测的样本数与总样本数的比值：
$$\mathcal{A} = \frac{1}{N}\mathbf{1}^\top I(\boldsymbol{y}=\hat{\boldsymbol{y}}).$$
对应的代码为：

def accuracy(preds, labels):
    """
    - preds (N, 1) 二分类或 (N, C) 多分类
    - labels (N, 1) 或 (N,)
    """
    if preds.dim() > 1 and preds.shape[1] == 1:
        # 二分类：阈值 0.5
        preds = (preds >= 0.5).float()
    elif preds.dim() > 1:
        # 多分类：取 argmax
        preds = preds.argmax(dim=1)
    labels = labels.reshape(preds.shape)
    return (preds == labels).float().mean().item()

# 测试一下
p = torch.tensor([[0.], [1.], [1.], [0.]])
l = torch.tensor([[1.], [1.], [0.], [0.]])
print('accuracy:', accuracy(p, l))   # 2/4 = 0.5

总结

将所有的代码合并到一起，最后添加训练和评估的代码，合并后的代码为：

import torch
import matplotlib.pyplot as plt

def losistic(x):
    return 1/(1+torch.exp(-x))

# 1. 数据集
import math

def make_moons(n_samples = 1000, shuffle = True, noise=None, seed = None):
    # 生成两个弯月形状的二分类数据
    g = torch.Generator().manual_seed(seed) if seed is not None else None
    n_out = n_samples // 2
    n_in = n_samples - n_out
    outer_x = torch.cos(torch.linspace(0, math.pi, n_out))
    outer_y = torch.sin(torch.linspace(0, math.pi, n_out))
    inner_x = 1-torch.cos(torch.linspace(0, math.pi, n_in))
    inner_y = 0.5-torch.cos(torch.linspace(0, math.pi, n_in))
    X = torch.stack([
        torch.cat([outer_x, inner_x]),
        torch.cat([outer_y, inner_y]),
    ], dim=1)
    y = torch.cat([torch.zeros(n_out), torch.ones(n_in)])
    if shuffle:
        idx = torch.randperm(X.shape[0], generator=g)
        X = X[idx]; y = y[idx]
    if noise is not None:
        X = X + torch.normal(mean=0.0, std=noise, size=X.shape, generator=g)
    return X, y

torch.manual_seed(0)
n_samples = 1000
X,y = make_moons(n_samples = n_samples, shuffle = True, noise = 0.2)
plt.figure()
plt.scatter(X[:,0].tolist(), X[:,1].tolist(), c = y.tolist())

# 训练集640条、验证集160条、测试集200条。
num_train, num_dev, num_test = 640, 160, 200
X_train, y_train = X[:num_train], y[:num_train]
X_dev,   y_dev   = X[num_train:num_train + num_dev], y[num_train:num_train + num_dev]
X_test,  y_test  = X[num_train + num_dev:], y[num_train + num_dev:]
y_train = y_train.reshape(-1, 1)
y_dev   = y_dev.reshape(-1, 1)
y_test  = y_test.reshape(-1, 1)
print('X_train shape:', X_train.shape, 'y_train shape:', y_train.shape)

# 2. 模型
class Op:
    def __call__(self, inputs):
        return self.forward(inputs)
    def forward(self, *args, **kwargs):
        raise NotImplementedError
    def backward(self, *args, **kwargs):
        raise NotImplementedError

class Model_LR(Op):
    def __init__(self, input_size):
        super().__init__()
        self.params = {
            'w': torch.rand(input_size, 1),
            'b': torch.zeros(1),
        }
        # 存放参数的梯度
        self.grads = {}
        self.X = None
        self.outputs = None

    def forward(self, inputs):
        """输入 X (N, D)，输出预测概率 (N, 1)。"""
        self.X = inputs
        score = inputs @ self.params['w'] + self.params['b']
        # 用数值稳定的 torch.sigmoid（等价于 logistic，但不会上溢）
        self.outputs = torch.sigmoid(score)
        return self.outputs

    def backward(self, labels):
        """直接给出 loss 关于参数的梯度（手动推导）。"""
        N = labels.shape[0]
        self.grads['w'] = -1 / N * (self.X.t() @ (labels - self.outputs))
        self.grads['b'] = -1 / N * (labels - self.outputs).sum()


# 3. 损失函数
class BinaryCrossEntropyLoss(Op):
    def __init__(self):
        self.predicts = None
        self.labels = None
    def __call__(self, predicts, labels):
        return self.forward(predicts, labels)
    def forward(self, predicts, labels):
        self.predicts = predicts
        self.labels = labels
        N = predicts.shape[0]
        eps = 1e-7
        # 对模型的预测概率进行裁剪（clamp），是深度学习实践中一个非常常见且重要的数值稳定化操作。它的核心目的是防止概率值达到0或1的极端边界
        p = predicts.clamp(eps, 1 - eps)
        loss = -1/N*(labels.t() @ torch.log(p)+(1-labels).t() @ torch.log(1-p))
        return loss.squeeze()


# 4. 优化方法
from abc import ABC, abstractmethod

class Optimizer(ABC):
    def __init__(self, init_lr, model):
        self.init_lr = init_lr
        self.model = model
    @abstractmethod
    def step(self):
        pass

class SimpleBatchGD(Optimizer):
    def step(self):
        if isinstance(self.model.params, dict):
            for key in self.model.params.keys():
                self.model.params[key] = self.model.params[key] - self.init_lr * self.model.grads[key]


# 5. 评价标准
def accuracy(preds, labels):
    """
    - preds (N, 1) 二分类或 (N, C) 多分类
    - labels (N, 1) 或 (N,)
    """
    if preds.dim() > 1 and preds.shape[1] == 1:
        # 二分类：阈值 0.5
        preds = (preds >= 0.5).float()
    elif preds.dim() > 1:
        # 多分类：取 argmax
        preds = preds.argmax(dim=1)
    labels = labels.reshape(preds.shape)
    return (preds == labels).float().mean().item()


# 后续代码
import os

class RunnerV2:
    """全批量梯度下降；记录 train/dev 历史到 history 字典；保存 dev 最优模型。
    - model：自定义 Op 算子（持有 params/grads 字典并实现 backward(labels)）
    - optimizer：实现 step() 的对象（如 SimpleBatchGD）
    - metric / loss_fn：评价指标与损失函数（返回 tensor 或 float 均可）
    """

    def __init__(self, model, optimizer, metric, loss_fn):
        self.model = model
        self.optimizer = optimizer
        self.loss_fn = loss_fn
        self.metric = metric
        # 训练过程指标统一收纳到 history 字典中
        self.history = {
            "train_loss": [], "dev_loss": [],
            "train_score": [], "dev_score": [],
        }

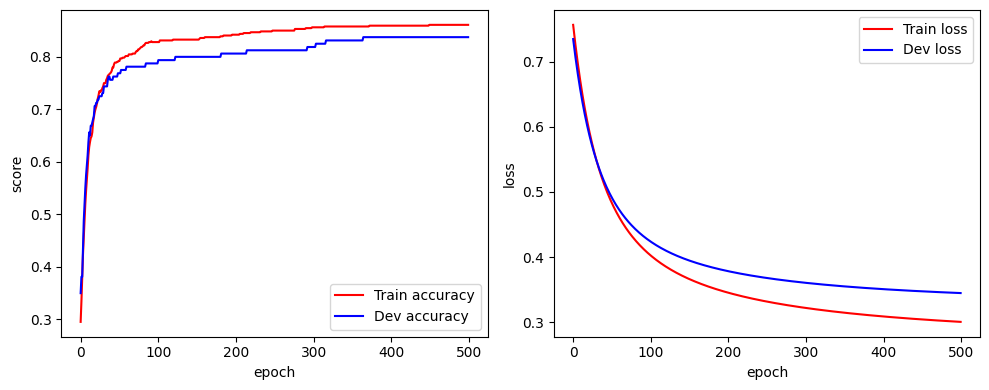

    def train(self, train_set, dev_set, num_epochs=100, log_epochs=100,
              save_path="model_best.pt"):
        # 用 -inf 初始化保证首轮一定触发对比
        best_score = -float("inf")
        X, y = train_set
        for epoch in range(num_epochs):
            # 训练一步
            logits = self.model(X)
            trn_loss = self.loss_fn(logits, y)
            if hasattr(trn_loss, "item"):
                trn_loss = trn_loss.item()
            trn_score = self.metric(logits, y)
            if hasattr(trn_score, "item"):
                trn_score = trn_score.item()
            self.model.backward(y)
            self.optimizer.step()
            self.history["train_loss"].append(trn_loss)
            self.history["train_score"].append(trn_score)
            # 验证集评估 + 写入历史 + best-checkpoint
            dev_score, dev_loss = self.evaluate(dev_set)
            self.history["dev_loss"].append(dev_loss)
            self.history["dev_score"].append(dev_score)
            if dev_score > best_score:
                self.save_model(save_path)
                print(f"best score updated: {best_score:.5f} -> {dev_score:.5f}")
                best_score = dev_score
            if (epoch + 1) % log_epochs == 0:
                print(f"[Train] epoch {epoch+1}  loss {trn_loss:.4f}  score {trn_score:.4f}")
                print(f"[Dev]   epoch {epoch+1}  loss {dev_loss:.4f}  score {dev_score:.4f}")

    def evaluate(self, data_set):
        """纯查询：不写入历史。
        训练循环里由 train 自己 append，最终测试集评估不会污染 dev 历史。
        """
        X, y = data_set
        logits = self.model(X)
        loss = self.loss_fn(logits, y)
        if hasattr(loss, "item"):
            loss = loss.item()
        score = self.metric(logits, y)
        if hasattr(score, "item"):
            score = score.item()
        return score, loss

    def predict(self, X):
        return self.model(X)

    def save_model(self, save_path):
        os.makedirs(os.path.dirname(save_path) or ".", exist_ok=True)
        torch.save(self.model.params, save_path)

    def load_model(self, save_path):
        self.model.params = torch.load(save_path, weights_only=True)

input_size = 2
model = Model_LR(input_size)
optimizer = SimpleBatchGD(init_lr=0.1, model=model)
loss_fn   = BinaryCrossEntropyLoss()
metric    = accuracy

runner = RunnerV2(model, optimizer, metric, loss_fn)
runner.train([X_train, y_train], [X_dev, y_dev],
             num_epochs=500, log_epochs=50,
             save_path='./checkpoint/model_lr_best.pt')

def plot(runner):
    plt.figure(figsize=(10, 4))

    plt.subplot(1, 2, 1)
    plt.plot(runner.history['train_score'], color='red',  label='Train accuracy')
    plt.plot(runner.history['dev_score'],   color='blue', label='Dev accuracy')
    plt.ylabel('score'); plt.xlabel('epoch'); plt.legend(loc='lower right')

    plt.subplot(1, 2, 2)
    plt.plot(runner.history['train_loss'], color='red',  label='Train loss')
    plt.plot(runner.history['dev_loss'],   color='blue', label='Dev loss')
    plt.ylabel('loss'); plt.xlabel('epoch'); plt.legend(loc='upper right')

    plt.tight_layout(); plt.show()

plot(runner)


score, loss = runner.evaluate([X_test, y_test])
print(f'[Test] score / loss: {score:.4f} / {loss:.4f}')

运行结果：

X_train shape: torch.Size([640, 2]) y_train shape: torch.Size([640, 1])
best score updated: -inf -> 0.35000
best score updated: 0.35000 -> 0.38125
best score updated: 0.38125 -> 0.43750
best score updated: 0.43750 -> 0.48750
best score updated: 0.48750 -> 0.51875
best score updated: 0.51875 -> 0.55000
best score updated: 0.55000 -> 0.57500
best score updated: 0.57500 -> 0.59375
best score updated: 0.59375 -> 0.61250
best score updated: 0.61250 -> 0.63750
best score updated: 0.63750 -> 0.65625
best score updated: 0.65625 -> 0.66875
best score updated: 0.66875 -> 0.67500
best score updated: 0.67500 -> 0.68125
best score updated: 0.68125 -> 0.68750
best score updated: 0.68750 -> 0.70625
best score updated: 0.70625 -> 0.71250
best score updated: 0.71250 -> 0.71875
best score updated: 0.71875 -> 0.72500
best score updated: 0.72500 -> 0.73125
best score updated: 0.73125 -> 0.74375
best score updated: 0.74375 -> 0.75625
best score updated: 0.75625 -> 0.76250
best score updated: 0.76250 -> 0.76875
...
[Train] epoch 450  loss 0.3046  score 0.8609
[Dev]   epoch 450  loss 0.3477  score 0.8375
[Train] epoch 500  loss 0.3008  score 0.8609
[Dev]   epoch 500  loss 0.3450  score 0.8375
Output is truncated. View as a scrollable element or open in a text editor. Adjust cell output settings...

[Test] score / loss: 0.8400 / 0.3264
